Delta Programmable logic controller (PLC)
AH Series Standard CPU.
Large Scale Industrial MachinesThe AH500 supports excellent motion control functions including 3-axis linear interpolation, 2-axis arc interpolation, and 3-axis helical interpolation. In addition, the AH500 is capable of controlling up to 12 axes or 4 groups of 3-axis interpolation synchronously at 1ms through Delta's high speed DMCNET motion control network. The AH500 satisfies requirements for complex processing or precise motion control and is effective for applications such as building material processors, warp knitting machines and food packaging machines.
System ApplicationsThe AH500 is a modular system controller designed for almost all types of high-level automation tasks. Its abundant selection of I/O modules and the flexible system structure provide the best solutions for all kinds of system integration requirements. Through remote I/O expandability, you can build up the AH500 main station as a central control system and allocate the remote I/O systems on different floors for HVAC applications, or in different processing stations for the paper-making industry. The AH500 not only fulfills the application requirements for industrial machines or devices, but it also provides total solutions for automation systems.
AH Series Redundant CPU
Redundant CPUThe redundant CPU of the AH Series adopts a reliable redundancy structure, and integrates synchronous modules, Ethernet ports and serial communication interfaces for a more competitive control solution.
Redundant BackplaneThe redundant backplane of the AH Series provides redundant power supply and communication interfaces for a complete control solution.
Utilizes 32-bit processorExcellent program execution speed：LD instruction execution speed 0.02µsMax. I/O points:- DIO: Max. 4,352 points- AIO: Max. 544 channels- RIO>100,000 points
Program capacity：Max 1M steps (4MB)Data register (D+L) 512 wordsBuilt-in RS-232/485 multi-modes communication port x1 (RS-232:115.2kbps/ RS-485: 921.6kbps)Built-in Ethernet communication port (100Mbps)Built-in micro SD card slot (supports max. 32GB)Built-in Mini-USB programming portSystem diagnosis /status light/online editing and debug functionsPLC Link automatic data exchange function
EtherNet/IP- Scanner & Adapter mode- Supports I/O connection & explicit message- Connections: TCP = 128; CIP = 256- RPI: 1~1,000ms- 250 words /connection- LD/SFC/FBD/IL/ST languages256 interrupts (Timed/IO/External/ Low voltage/Communication)Redundant mode only supports timed interrupt2048 timers and countersNo battery requiredRTC function (max. 30 days after power off)NTP network time correction functionWEB/E-mail/IP Filter functionSupports redundant system- CPU switch-over time: 20ms- Built-in sync. Module
AH Motion is the advanced motion control series with dedicated motion control CPUs and shares the same modules with AH series PLCs. Through the motion control network, such as EtherCAT, AH Motion CPU can perform high-speed, high-precision machine control with the connected servo drives on the motion network.
Standard Motion Control SystemProvides EtherCAT, DMCNET and pulse train solutions for customers.Motion modules can independently take care of both the logic and motion control. Users can write and download the programs to the motion modules.All motion modules support the standard motion control system.All motion modules can be installed on the local backplanesMotion control functions:
- Pulse train module: Max. 1 MHz output - DMCNET module: Min. synchronization time at 12 axes is 1 ms - EtherCAT module: Min. synchronization time at 8 / 16 / 32 axes is 0.5 / 1 / 2 msSupports UD / PD / AB / 4AB input modesSupports MPG inputs / E-Cam / G-code / 2 ~ 6 axes linear interpolation / 2 axes arc interpolation / 3 axes helical interpolationNote: The EtherCAT motion modules (AHxxEMC-5A) do not yet have support installed on the I/O slots.
AH Series Expansion Module
Digital modules (output/input/mix), analog modules (output/input/mix), temperature measurement modules, network modules, I/O communication modules, motion control modules
ApplicationsLarge Scale Industrial MachinesThe AH500 supports excellent motion control functions including 3-axis linear interpolation, 2-axis arc interpolation, and 3-axis helical interpolation. In addition, the AH500 is capable of controlling up to 12 axes or 4 groups of 3-axis interpolation synchronously at 1ms through Delta's high speed DMCNET motion control network. The AH500 satisfies requirements for complex processing or precise motion control and is effective for applications such as building material processors, warp knitting machines and food packaging machines.
The Delta Compact Modular Mid-range PLC AS Series is a high performance multi-purpose controller designed for all kinds of automated equipment. It features Delta's self-developed 32-bit SoC CPUs for enhanced execution speed (40 k steps/ms) and supports up to 32 extension modules or up to 1,024 inputs/outputs. The AS series provides accurate positioning control for up to 8 axes via CANopen motion network and max. 6 axes via pulse control (200 kHz). It is widely used in diverse automated equipment such as electronics manufacturing, labeling, food packaging, and textile machines.
Features & Benefits
New 32-bit SoC (System on Chip) CPU to enhance execution speed（40 k steps / ms）Positioning control function for up to 8-axis motion control via CANopen / 6-axis 200 kHz pulse controlRobust non-backplane design and patented DIN rail clips for vertical module installation and replacementISPSoft editing software for programming, hardware configuration, network communication, system diagnostics and positioning planning
Applications
Automated equipment such as electronics manufacturing, labeling, food packaging, and textile machines
Specifications
32-bit SoC (System on Chip) CPUMax. I/O: 1,024Program capacity: AS300 series 128k steps, AS200 series 64k stepsData registers: 60k wordsExtension modules: max. 32 (analog modules: max.16 / communication modules: max. 4)Execution speed: up to 40 k steps / ms - Basic instruction (LD): 25 ns - Application instruction (MOV): 0.15 μsAbundant selection of DIO modules, AIO modules, temperature modules, load cell module and function cards.
AS series motion CPU features EtherCAT/CANopen motion control interface and multiple communication ports. It also offers motion control function blocks complying with international standards and synchronizes up to 16/24 real axes in one update cycle. AS series motion CPUs are widely used in diverse automated equipment such as woodworking, packaging, printing, labeling, textile and pharmaceutical industrial.
Features & Benefits
32 axes can be synchronized (including virtual axes)- AS516E(EtherCAT): 16 axes/1ms, max. 16 real axes- AS524C(CANopen): 4 axes/2ms, max. 24 real axesOffers motion function blocks complying with international standards, supporting Jerk and BufferMode to enable non-stop operation between motion pathsSupports encoder axes and virtual axes. No need to purchase additional encoder modules Easy-to-use basic motion control features:- Single-axis speed/position/homing/torque control commandsAdvanced motion features to fulfill complex processing requirements:- Electronic gear, electronic cam and rotary cut applications function blocks- G code/group axes commands: supports up to 8-axis linear/arc/helical interpolationSupports AS series I/O modules with faster I/O response to CPUControl program compatible with new generation DVP-MC series motion CPU, making effortless platform transition between DVP and AS motion controllersSupports 3-party EtherCAT slaves (AS516E*), allowing a more flexible system structure*Note: will be supported in future updates of AS516E
Applications
Electronics manufacturing, packaging, printing, sealing, wire electrical-discharge machining, pharmaceutical machines, digital board cutting machines, CNC lathe, and more
Specifications
Motion Control Network:- AS516E: EtherCAT (100 Mbps)- AS524C: CANopen DSP402 (1 Mbps)
Controllable Axes/Time: Up to 32 axes can be synchronized including virtual axes- AS516E(EtherCAT): 16 axes/1ms; max. 16 real axes- AS524C(CANopen): 4 axes/2ms, 8 axes/4ms; max. 24 real axesE-CAM function:- Number of
E-CAM table: 64- Data points of single E-CAM: 2048Program/Performance:- Program: 20 MB; Symbol: 20 MB: G code: 256KB- 1GHz high-speed processor supports high-precision computing for 64-bit LREAL data(Double-precision floating-point format)
Communication:- Programming/serial communication ports: USB(2.0)/RS232/RS485- CANopen port: 1 (DS301 master/slave)- Ethernet port: 1 (AS516E) / 2(AS524C); supporting MODBUS TCP (Server/Client) and Ethernet/IP(Adapter)
I/O Interface:- Built-in 2 incremental encoder interfaces and 1 SSI absolute encoder interface- Onboard I/O: 16DI(supports interrupts) / 8DO- Max. I/O: 1,024- Module expansion: max. 32 (analog modules: max.16)
Built-in Mini SD card slot
Supports RTC function (CR1620 3V battery is required)
The AX-3 Series Motion CPU adapts the CODESYS platform and supports both motion and logic control applications. It has multiple communication ports and an EtherCAT motion control interface onboard. It also offers motion control function blocks complying with international standards and supports 8 ~ 32 motion axes and 4 ~ 64 point-to-point axes control, widely applied in automation machines in the woodworking, packaging, printing, labeling, textile, and pharmaceutical industries.
Features & Benefits
AX-3 CODESYS Control SystemProvides multiple controller solutionsEtherCAT motion controllers
- AX-308E / AX-316E / AX-332E CPU supports up to 8 / 16 / 32 EtherCAT axes (AX-332E min. sync time: 1 ms / 32 axes)-
AX-304EL / AX-364EL CPUs support up to 4 / 64 EtherCAT axes (Point-to-Point mode)Logical controllers
- AX-300N / AX-324N CPUs built-in 0 / 24 DIO pointsSupports AS power, DIO, AIO and temperature expansion modules (max. 32 modules)High performance, min. command execution time: 2 nsProvides various motion commands: position, velocity, torque, multi-axis interpolation, E-gear, E-CAM, and moreBuilt-in 6
~ 16 DI & 6 ~ 8 DO, incremental encoders, SSI absolute encoder, RS-232 / 422 / 485, Ethernet and EtherCAT interfacesHighly integrated CPU design
The AX-3 motion control CPUs feature various built-in I/O and communication protocols to satisfy customer needs for compact design and high performance
AS / AX-3 Series Expansion Module
Specifications
Digital I/O modules (output/input/mix): 8 , 16 , 32 , 64 I/O
Analog I/O modules (output/input/mix): 4 channel, 8 channel inputs(16-bit) /outputs(12-bit)
Temperature measurement modules: conversion time 200ms/channel, overall accuracy+/-0.1%, resolution0.1°C / 0.1°F(24-bit), RTD inputs: Pt100, Pt1000, Ni100, Ni1000, Cu50, Cu100, JPt100, LG-Ni1000, 0~300Ω or 0~3000Ω, thermocouple inputs: J, K, R, S, T, E, N, B type
Load cell modules: independent dual-channel high speed high accuracy load cell modules with 24 bit resolution with 2.5ms response rate
Communication modules (function cards): communication module and CPU support RS-232, RS-422, RS-485, Ethernet, CANopen communication
High quality PLC Controller Delta AS218RX-A Server Driver New Original.
The AS218RX-A is a high performance multi-purpose mid-range plc controller designed for all types of automated equipment. Featuring Delta self-developed 32-bit SoC CPUs for enhanced execution speed (40k steps/ms) supporting up to 32 extension modules or up to 1.024 Inputs/Outputs. Providing accurate positioning control for up to 8 axes via CANopen motion network and 6 axes via pulse control (200kHz). Widely used in diverse automated equipment, electronics manufacturing, labelling, food packaging, and textile machines.
32-bit CPU for high-speed processing
Max. execution speed of basic instructions: 25 ns
Built-in mini USB, micro SD slot RS-232 / 2x RS-485 com ports (Master/Slave), Ethernet IP (Adaptor and scanner)
Rackless design (no-backplane) direct DIN rail mounting, patented DIN rail clips for fast vertical module installation
Compact dimensions (H) 88 mm x (D) 95 mm Program capacity: 64k steps
Data register: 60k words
Communication: USB, Ethernet, 2 x RS-485, CANopen Plug-in, screwless (push-in) terminals for ease of wiring and maintenance
AS300N-AAS300N-A -
Delta AS300 PLC, No Onboard IO
32-bit CPU for high-speed processing
Max. execution speed of basic instructions: 25 ns
Built-in mini USB, micro SD slot RS-232 / 2x RS-485 com ports (Master/Slave), Ethernet IP (Adaptor and scanner)
Rackless design (no-backplane) direct DIN rail mounting, patented DIN rail clips for fast vertical module installation
Compact dimensions (H) 88 mm x (D) 95 mm
Program capacity: 128k steps / Data register: 60k words
Communication: USB, Ethernet, 2 x RS-485, (accepts 2 x AS-F function cards)
2 x Incorporated slots accepting AS-F communication and/or analog function cards
Plug-in, screwless (push-in) terminals for ease of wiring and maintenance
The AS300N-A is a high performance multi-purpose mid-range plc controller designed for all types of automated equipment. Featuring Delta self-developed 32-bit SoC CPUs for enhanced execution speed (40k steps/ms) supporting up to 32 extension modules or up to 1.024 Inputs/Outputs. Providing accurate positioning control for up to 8 axes via CANopen motion network and 6 axes via pulse control (200kHz). Widely used in diverse automated equipment, electronics manufacturing, labelling, food packaging, and textile machines.
SERIE- DVP14SS211R
DVP14SS211R - Delta, PLC, DVP Series, 8DI, 6DO, Relay
MPU Points: 14 Points (8DI 6DO) expandable to 494 I/O points
Program Capacity: 8 Steps
Data Register: 5K Word
Built-in RS232 and RS485 ports – Supports Modbus ASCII/RTU protocol
Supports PID auto-tuning and saves parameters automatically
Supports DVP-S series left-side (high-speed) expansion modules
4 sets of 10kHz pulse output
8 sets of high-speed counters (4 x 20kHz and 4 x 10kHz)
Compact dimensions (H) 90 mm x (D) 60 mm DIN rail mounting
The Delta DVP14SS211R programmable logic controller (PLC), is Delta Electronics’ 2nd generation DVP-SS2 series slim type PLC keeps the basic sequential control functions from the DVP-SS series PLC but with faster execution speed and enhanced real-time monitoring capability.
SERIE- DVP12SA211R
DVP12SA211R - Delta, PLC, DVP Series, 8DI, 4DO, Relay-
MPU Points: 14 Points (8DI 6DO) expandable to 494 I/O points
Program Capacity: 8 Steps
Data Register: 5K Word
Built-in RS232 AND rs485 ports –
Supports Modbus ASCII/RTU protocol
Supports PID auto-tuning and saves parameters automaticallySupports DVP-S series left-side (high-speed) expansion modules
4 sets of 10kHz pulse output
8 sets of high-speed counters (4 x 20kHz and 4 x 10kHz)
Compact dimensions (H) 90 mm x (D) 60 mm DIN rail mounting
SERIE- DVP10SX11R
DVP10SX11R - Delta, PLC, DVP Series, 4DI, 2DO, 2AI, 2AO, Relay
MPU Points: 14 Points (8DI 6DO) expandable to 494 I/O pointsProgram
Capacity: 8 StepsData Register: 5K Word
Built-in RS232 AND rs485 ports –
Supports Modbus ASCII/RTU protocol Supports PID auto-tuning and saves parameters automatically
Supports DVP-S series left-side (high-speed) expansion modules
4 sets of 10kHz pulse output
8 sets of high-speed counters (4 x 20kHz and 4 x 10kHz)
Compact dimensions (H) 90 mm x (D) 60 mm DIN rail mounting

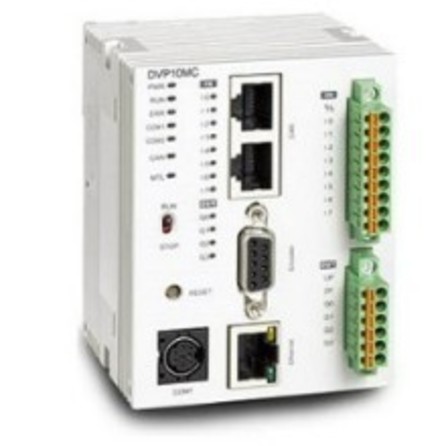

SERIE - DVP10MC11T
DVP10MC11T - Delta, PLC, DVP Series, 8DI, 4DO, Motion Controller.
MPU Points: 14 Points (8DI 6DO) expandable to 494 I/O points
Program Capacity: 8 StepsData Register: 5K Word
Built-in RS232 AND rs485 ports –
Supports Modbus ASCII/RTU protocolSupports PID auto-tuning and saves parameters automatically
Supports DVP-S series left-side (high-speed) expansion modules
4 sets of 10kHz pulse output
8 sets of high-speed counters (4 x 20kHz and 4 x 10kHz)
Compact dimensions (H) 90 mm x (D) 60 mm DIN rail mounting
SERIE - DVP20ES200RE
DVP20ES200RE - Delta, PLC, DVP-ES2 Series, 12DI, 8DO, Relay.
Adopts 32-bit CPU
DIN rail mounting or chassis mount
Plug-in termination
Program capacity: 16k steps
Data register: 10k Words
Built-in communication ports (1 x RS232 and 2 x RS485)
Built-in high speed inputs (2 x 200kHz and 6 x 10kHz) supports U/D, U/Dir, A/B counting modes
New motion control instructions: close loop control, alignment mark, shield etc.
Exclusive instructions and function blocks designed for PV solar tracker
The Delta DVP20ES200RE programmable logic controller (PLC), is a compact highly efficient, functional instrument with incorporated communication capabilities, advantages such as built-in convenient commands offer easy access to operation and communication function monitoring.
APAX-5000 Controllers use an open development architecture with embedded KW Multiprog Softlogic software and optional HMI/SCADA, integrates control, information processing, and networking in a single automation control system. Advantech’s APAX products leverages KW Multiprog and ProConOS as the development tool. Users can easily choose the most suitable SoftLogic software to use.
APAX-5580 - Intel® Core™ i7/i3/Celeron DIN-Rail IPC w/ 2 x GbE, 2 x mPCIe, VGA
4th Generation Intel® Core™ i7/i3/Celeron Processors up to 1.7 GHz with 4GB/8GB DDR3L Memory
2 x GbE, 4 x USB 2.0/3.0, 1 x RS-232 /422/485, 1 x VGA, Audio
Dual power input and UPS support
Compact with Fanless Design
Supports Fieldbus Protocol by iDoor Technology
3G/GPS/GPRS/Wi-Fi Communication by mPCIe
Chassis Grounding Protection
LAN Redundancy (Teaming)
Fault-Protected RS-485 Transceivers With Extended Common-Mode Range
One button system recovery
10 year lifetime RTC battery
